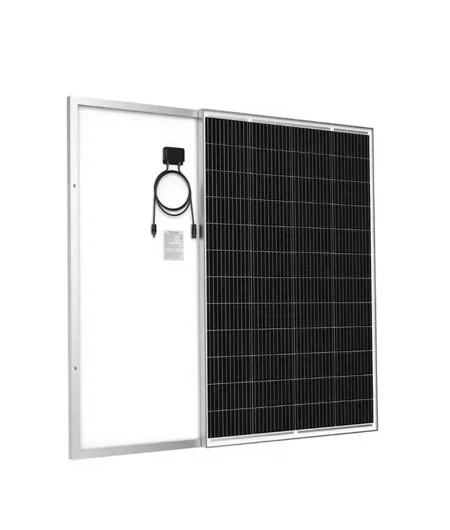

Cola Solar Panel 320

Name: Cola Solar Panel 320 - Health And Wealth Mall
Published: 2026-02-10T14:34:47+00:00

21 people are viewing this right now

Guaranteed safe & secure checkout

Product Parameters

**Mechanical Characteristics**
Cell Type：Mono,182*91	No. of cells：64pcs(482)
Dimensions：154076530 mm	Weight：/
Glass：3.2mm Tempered Glass	Frame：Anodized Aluminium Alloy
Junction BoX：IP68, 2 Bypass Diodes	Output Cables：MC4

**SPECIFICATIONS**
Module Type：Cola Sp300	Maximum Power (Pmax)：320W
Maximum Power Voltage (Vmp)：28.76V	Maximum Power Current (lmp)：11.13A
Open-circuit Voltage (Voc)：32.95V	Short-circuit Current (lsc)：11.78A
Module Efficiency STC (%)：19.91	Operating Temperature(C)：-40~+85
Maximum system voltage：1500	Maximum series fuse rating：25A
Power tolerance：0~+5W	Temperature coefficients of Pmax：-0.32%/C
Temperature coefficients of Voc：-0.26%/°C	Temperature coefficients of lsc：+0.046%/C
Nominal operating cell temperature (NOCT)：42°C±2°C
